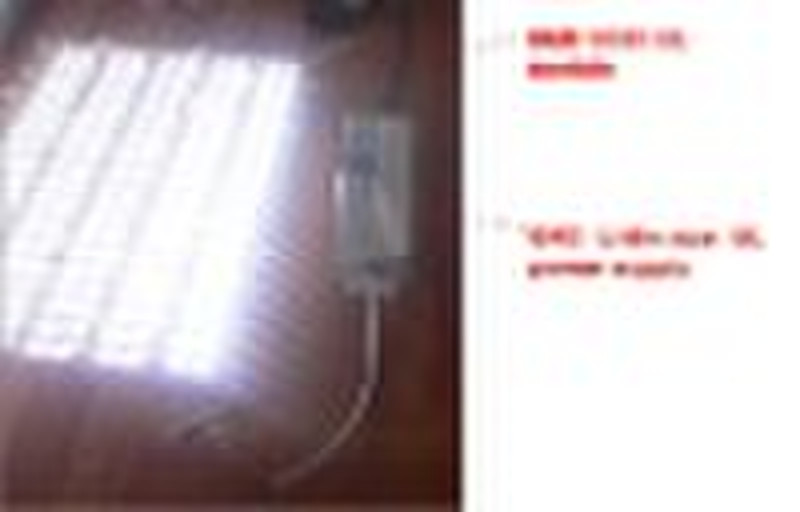

LED Power Supply

LED Power Supply Waterproof IP67 LED driver with UL/ CUL E333976 Specification : (60W) Input voltage: 100 260VAC Output voltage: 12V / 24V Output current: 5A / 2.5A Output power: 60W Size: 170X62X40 MM SPECIFICATION LPS IP67 MODEL HMA-60-12OUTPUT DC VOLTAGE 12VRATED CURRENT 5ACURRENT RANGE 0 5ARATED POWER 60WRIPPLE&NOISE(max.) note. 2 2Vp-pVOLTAGE TOLERANCE ±10%LINE REGULATION ±3%LOAD REGULATION ±5%INPUT VOLTAGE RANGE 90 264VACFREQUENCY RANGE 47 63HzPOWER FACTOR PF>=0.9(75 100%LOADE),115VAC/230VACEFFICIENCY (Typ.) 90%AC CURRENT 0.8A/115VAC 0.4A/230VACINRUSH CURRENT(max.) COLD STAR 40A/230VACLEAKAGE CURRENT <0.75mA /240VACPROTEC- TION OVER CURRENT Note.4 95 110% Protection type : Constant current limiting, recovers automatically after fault condition is removedOVER VOLTAGE 13.8 16V Protection type: Shut down o/p voltage, re-power on to recover. OVER TEMPERATURE90°C±10 °C(TSW1)Protection type : Shut down o/p voltage, re-power on to recoverENVIRON-MENT WORKING TEMP. -30 +70%(Refer to output load derating curve) WORKING HUMIDITY 20 90% RH-nondensing SHORAGETEMP,HUMIDITY -40 +80°C, 10 95% RH TEMP.CONEFFICIENT ±0.03%/°C(0 50°C) VIBRATION 10 500Hz, 2G 10min./1 cycle, period for 60min. each long X, Y, Z axes. SAFETY & EMC SAFETY STANDARDS UL879 1310 Class 2, CAN/CSA C22.2 No.222-M91, IP67 approved, Design refer to TUV EN61347-2-13 WITHSTAND VOLTAGE I/P-O/P:3KVAC ISOLATION RESISTANCE I/P-O/P:>100M Ohms / 500VDC / 25°C / 70% RH EMI CONDITION & RADIATION Compliance to EN55022(CISPR22)Class B HARMONIC CURRENT Compliance to EN61000-3-2,-3 EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A OTHERS MTBF >=302Khrs min. MIL-HDBK-217F (25°C) DIMENSION 190.8*62.2*40.5mm (L*W*H) PACKING 0.7Kg/pc
