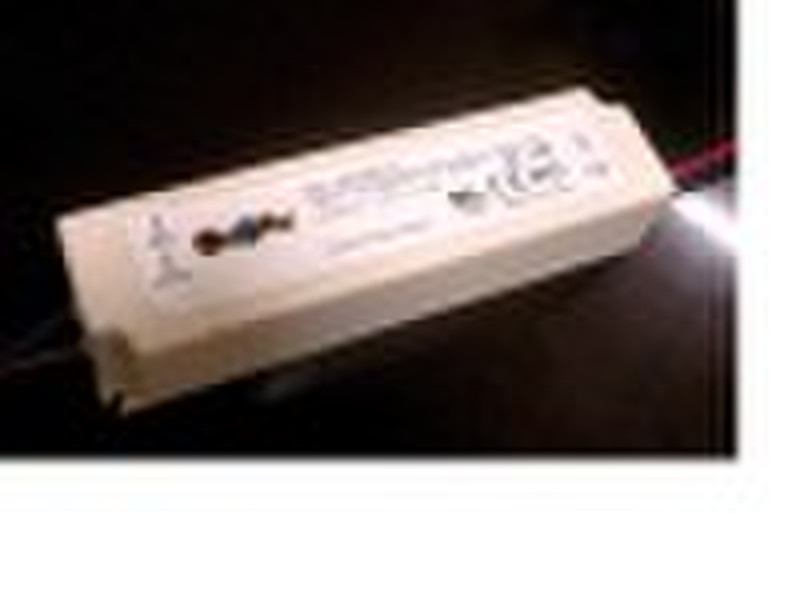

60W LED power supply

Features : Constant voltage design Universal AC input / Full range Epoxy encapsulated with IP67 level Withstand 300VAC surge input for 5 seconds Protections: Short circuit / Overload / Over voltage Fully isolated plastic case Cooling by free air convection UL1310 Class 2 power unit, pass LPS 100% full load burn-in test Low cost, high reliability Suitable for LED lighting and moving sign applications 2 years warranty Input voltage: 90 264VAC Output voltage: 12V Output current: 5A Output power: 60W Net weight: 0.33Kg Waterproof grade: IP6 Dimensions: 160mm x 42mm x 32mm SPECIFICATION LPS IP67 MODEL HME-60N-R12OUTPUT DC VOLTAGE 12VRATED CURRENT 5ACURRENT RANGE 0 5ARATED POWER 60WRIPPLE&NOISE(max.) 120mVp-pVOLTAGE TOLERANCE ±5.0%LINE REGULATION ±1.0%LOAD REGULATION ±6.0%SETUP,, RISE TIME 500ms 20ms/230VAC 500ms 20ms/115VAC at full loadHOLD UP TIME(Typ.) 50ms/230VAC 16ms/115VAC at full loadINPUT VOLTAGE RANGE 90 264VACFREQUENCY RANGE 47 63HzEFFICIENCY (Typ.) 83%AC CURRENT 1A/115VAC 0.56A/230VACINRUSH CURRENT(max.) COLD STAR 30A/115VAC 60A/230VACLEAKAGE CURRENT 0.25mA /240VACPROTEC- TION OVERLOAD RANGE 110 150%MODE Protection type: Hiccup mode, recovers automatically after fault condition is removedOVER VOLTAGE 110 150% rated output powerENVIRON-MENT WORKING TEMP. -30 +70%(Refer to output load derating curve)WORKING HUMIDITY 20 90% RH-nondensingSHORAGETEMP,HUMIDITY -40 +80°C, 10 95% RHTEMP.CONEFFICIENT ±0.03%/°C(0 50°C)VIBRATION 10 500Hz, 2G 10min./1 cycle, period for 60min. each long X, Y, Z axes.SAFETY & EMC SAFETY STANDARDS UL1310 Class 2, CAN/CSA C22.2 No.222-M91(except for 5V, 48V), IP67 approved, Design refer to TUV EN61347-2-13WITHSTAND VOLTAGE I/P-O/P:3KVACISOLATION RESISTANCE I/P-O/P:>100M Ohms / 500VDC / 25°C / 70% RHEMI CONDITION & RADIATION Compliance to EN55022(CISPR22)Class BHARMONIC CURRENT Compliance to EN61000-3-2,-3EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria AOTHERS MTBF 732Khrs min. MIL-HDBK-217F (25°C)DIMENSION 160*42*32mm (L*W*H)
