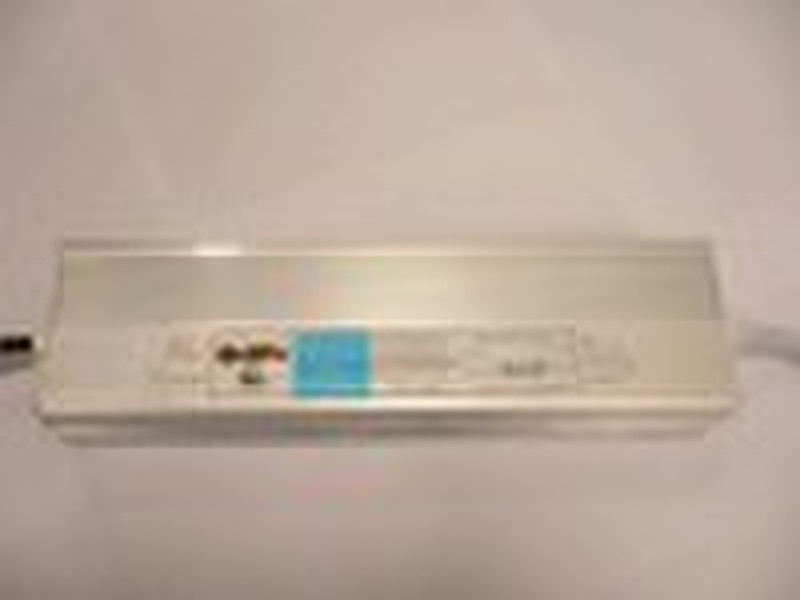

60W LED Power Supply

60W LED Power Supply waterproof IP67 LED driver With UL/CUL Certification cerification no. E319205 INPUT:120AC/60Hz , 2.0A OUTPUT:DC12V / 24v, 5A/2.5A Dimension; 236 x 70 x 46 mm Whenshort circuit, over loading, over pressure, it will cut the electricity. Waterproof It is steady to press, and can prolong the LED light service life The IP67 can be used inside and outside. warranty: Two years SPECIFICATION LPS IP67 MODEL HMA-60-12 HMA-60-24 OUTPUT DC VOLTAGE 12V 24V RATED CURRENT 5A 2.5A CURRENT RANGE 0 5A 0 2..5A RATED POWER 60W 60W RIPPLE&NOISE(max.) note. 2 120mVp-p 150mVp-p VOLTAGE TOLERANCE ±8.0% ±5.0% LINE REGULATION ±1.0% LOAD REGULATION ±6..0% ±2.0% SETUP,, RISE TIME note.6 500ms 20ms/230VAC 500ms20ms/115VAC at full load(for 5 36V);500ms 20ms/230VAC 500ms20ms/115VAC at full load(for 5 36V); HOLD UP TIME(Typ.) 50ms/230VAC 16ms/115VAC at full load INPUT VOLTAGE RANGE 120vAc FREQUENCY RANGE 47 63Hz EFFICIENCY (Typ.) 83% 86% AC CURRENT 1.2A/115VAC 1A/230VAC INRUSH CURRENT(max.) COLD STAR 30A/115VAC 60A/230VAC LEAKAGE CURRENT 0.25mA /240VAC PROTEC- TION OVER CURRENT Note.4 110 150% rated output power Protection type: Hiccup mode, recovers automatically after fault condition is removed OVER VOLTAGE 13.8 16.2V 27.6 32.4V Protection type: Shut down o/p voltage, re-power on to recover. ENVIRON-MENT WORKING TEMP. -30 +70%(Refer to output load derating curve) WORKING HUMIDITY 20 90% RH-nondensing SHORAGETEMP,HUMIDITY -40 +80°C, 10 95% RH TEMP.CONEFFICIENT ±0.03%/°C(0 50°C) VIBRATION 10 500Hz, 2G 10min./1 cycle, period for 60min. each long X, Y, Z axes. SAFETY & EMC SAFETY STANDARDS UL1310 Class 2, CAN/CSA C22.2 No.222-M91(except for 5V, 48V), IP67 approved, Design refer to TUV EN61347-2-13 WITHSTAND VOLTAGE I/P-O/P:3KVAC ISOLATION RESISTANCE I/P-O/P:>100M Ohms / 500VDC / 25°C / 70% RH EMI CONDITION & RADIATION Compliance to EN55022(CISPR22)Class B HARMONIC CURRENT Compliance to EN61000-3-2,-3 EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A OTHERS MTBF 732Khrs min. MIL-HDBK-217F (25°C)
