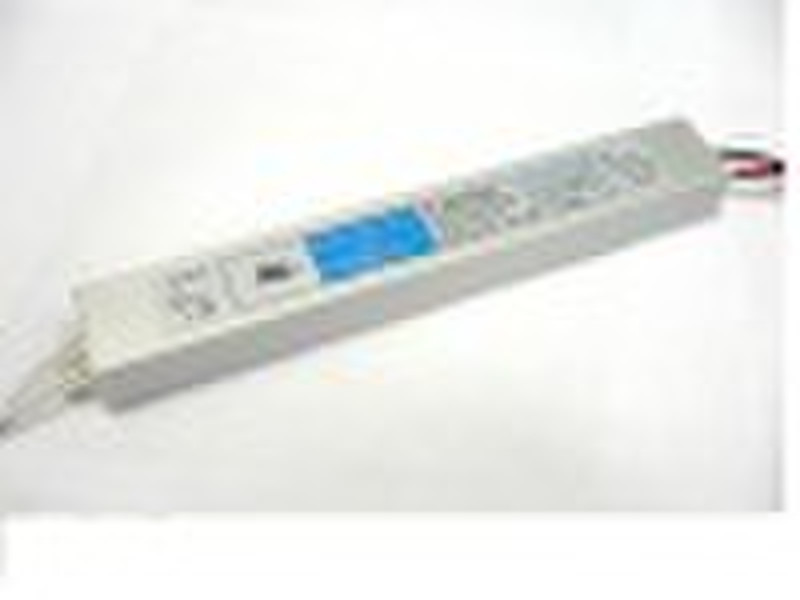

30W LED Power Supply

30W LED Power Supply waterproof IP67 with UL /CUL UL No. E333976 INPUT:120AC/50Hz , 0.09A OUTPUT:DC12V, 30W/2.5 Pass the United States, Canada attestation UL / CUL It is steady to press, and can prolong the LED light service life Waterproof IP67 Best suitable for the LED sign and display. Dimension: 222 x 30 x 20 mm SPECIFICATION LPS IP67 MODEL HMA-30-12 HMA-30-24 OUTPUT DC VOLTAGE 12V 24V RATED CURRENT 2.5A 1.25A CURRENT RANGE 0 2.5A 0 1.25A RATED POWER 30W 30W RIPPLE&NOISE(max.) note. 2 120mVp-p 150mVp-p VOLTAGE TOLERANCE ±5.0% LINE REGULATION ±1.0% LOAD REGULATION ±6..0% ±2.0% SETUP,, RISE TIME note.6 500ms 20ms/230VAC 500ms20ms/115VAC at full load(for 5 36V);500ms 20ms/230VAC 500ms20ms/115VAC at full load(for 5 36V); HOLD UP TIME(Typ.) 50ms/230VAC 16ms/115VAC at full load INPUT VOLTAGE RANGE 90 264VAC FREQUENCY RANGE 47 63Hz EFFICIENCY (Typ.) 83% 86% AC CURRENT 1.2A/115VAC 1A/230VAC INRUSH CURRENT(max.) COLD STAR 30A/115VAC 60A/230VAC LEAKAGE CURRENT 0.25mA /240VAC PROTEC- TION OVER CURRENT Note.4 110 150% rated output power Protection type: Hiccup mode, recovers automatically after fault condition is removed OVER VOLTAGE 13.8 16.2V 27.6 32.4V Protection type: Shut down o/p voltage, re-power on to recover. ENVIRON-MENT WORKING TEMP. -30 +70%(Refer to output load derating curve) WORKING HUMIDITY 20 90% RH-nondensing SHORAGETEMP,HUMIDITY -40 +80°C, 10 95% RH TEMP.CONEFFICIENT ±0.03%/°C(0 50°C) VIBRATION 10 500Hz, 2G 10min./1 cycle, period for 60min. each long X, Y, Z axes. SAFETY & EMC SAFETY STANDARDS UL1310 Class 2, CAN/CSA C22.2 No.222-M91(except for 5V, 48V), IP67 approved, Design refer to TUV EN61347-2-13 WITHSTAND VOLTAGE I/P-O/P:3KVAC ISOLATION RESISTANCE I/P-O/P:>100M Ohms / 500VDC / 25°C / 70% RH EMI CONDITION & RADIATION Compliance to EN55022(CISPR22)Class B HARMONIC CURRENT Compliance to EN61000-3-2,-3 EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A
